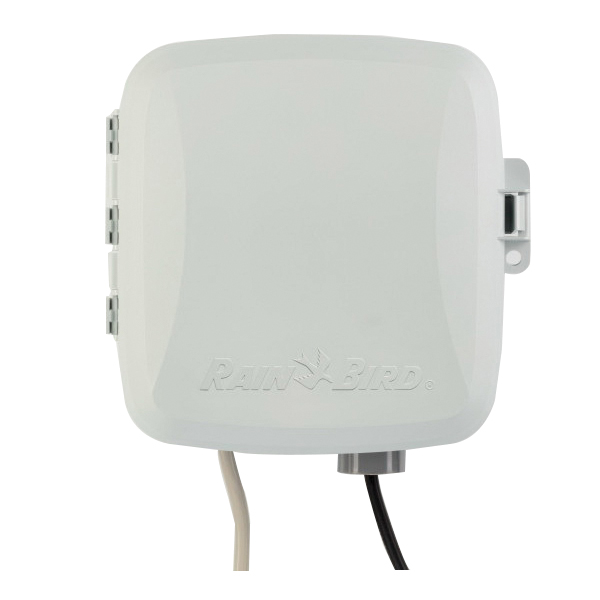

Put control of your sprinkler system in the palm of your hand with a smart irrigation Wi-Fi controller from Rain Bird. The ARC8 controller provides simple commands at the controller interface that are complemented by advanced features accessed through the Rain Bird mobile app. The controller provides flexible scheduling features to accommodate a wide variety of landscape applications that can be adjusted automatically all year long to ensure a healthy, beautiful landscape, saving you time and money. That's The Intelligent Use of Water™.
Cord Length
|
:
|
6 ft
|
Dimensions
|
:
|
7.92 in L x 3.51 in W x 7.86 in H
|
Enclosure Type
|
:
|
IP24
|
Includes
|
:
|
(2) Mounting Screws
|
Operating Temperature
|
:
|
149 deg F
|
Power Supply
|
:
|
120 VAC at 60 Hz Input, 0.68 A at 24 VAC Nominal, 1 A at 24 VAC Maximum
|
- Simply smart watering - use your mobile device to set, monitor and adjust schedules from anywhere
- Greater scheduling flexibility - keep your lawn healthy with three individual programs (A, B, C) and four start times per program for 12 total start times
- Self-adjusting technology reduces water usage up to 30% - automatically skips or adjusts daily watering duration based on historical weather averages, yesterday's known weather and tomorrow's weather forecast in a local postal code, can be applied to all programs simultaneously or to individual programs
- Powerful water features - easily meet regional watering restrictions with advanced features like notifications, custom program cycles, rain delay and more
- Rugged design - robust set screw terminals to accommodate up to eight stations plus master valve/pump start relay and rain/rain freeze sensor, controller comes pre-installed in a contractor-grade case to withstand even the harshest environments
- Watering delay - suspend watering for up to 14 days when it rains even without a rain sensor, programming automatically resumes when delay has ended
- Meets EPA WaterSense criteria - independently certified by ICC-ES for efficiency and performance
- Smart home compatible - use your voice to control sprinkler system when connected to Amazon Alexa or Google Assistant
- Convenient access sharing - safely share control for a specified time with family members or landscaping and maintenance professionals that may wish to adjust programming or make system repairs

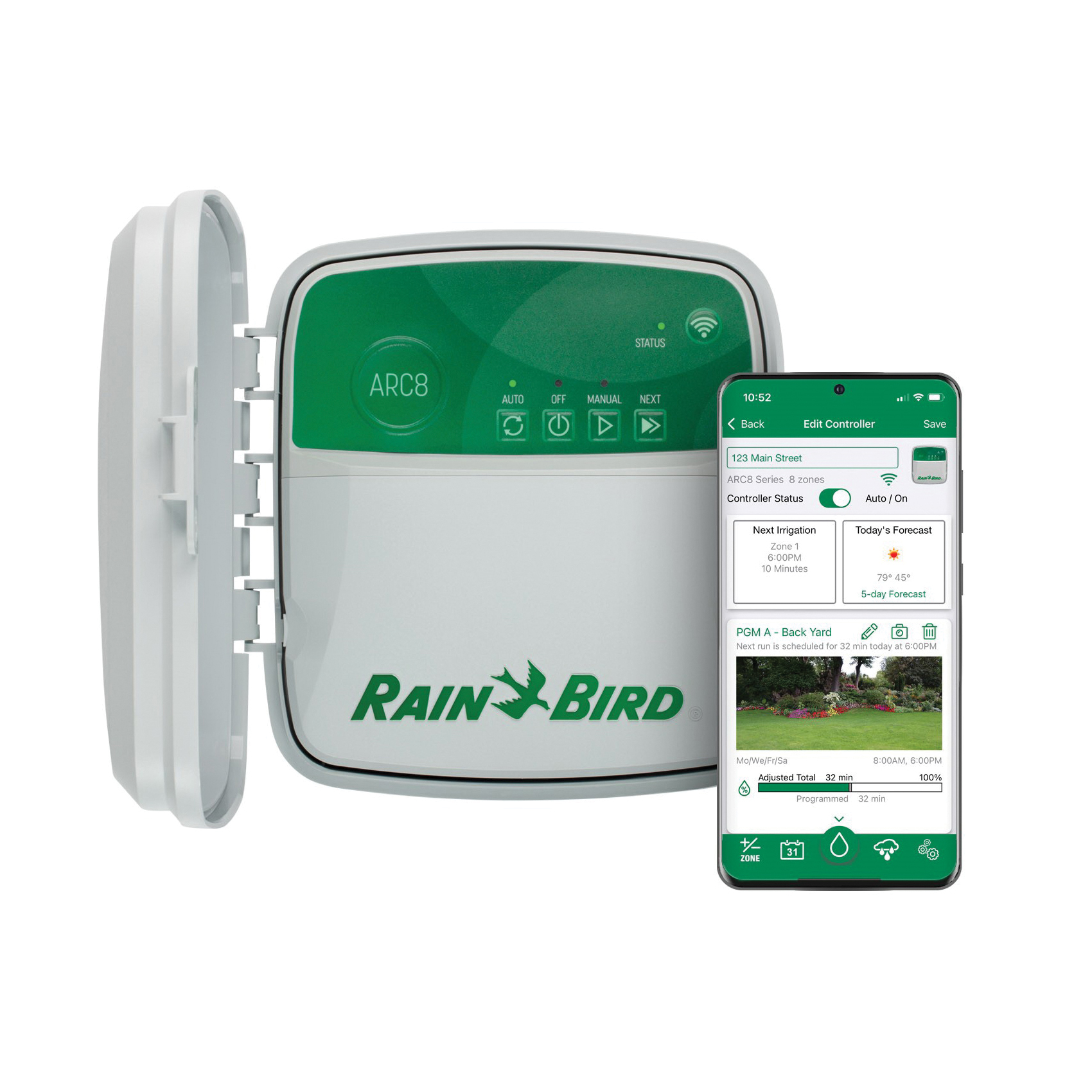

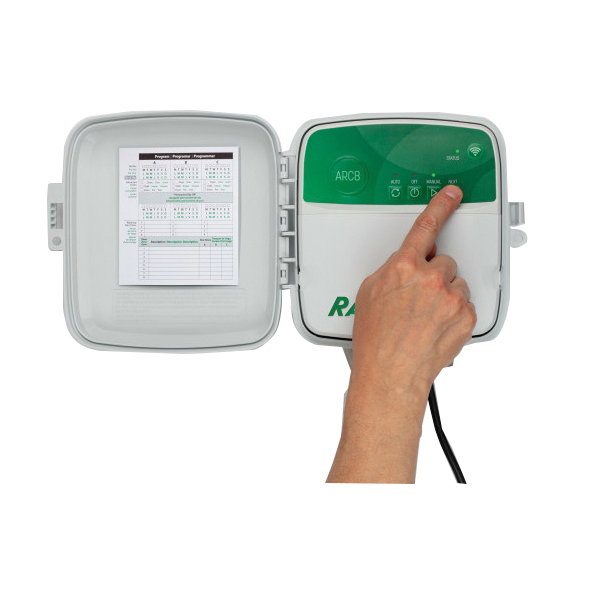

- Intuitive design - simple commands at the controller interface complemented by advanced features accessed through the Rain Bird mobile app with or without Wi-Fi available on site
-
Catalog
https://assets.unilogcorp.com/187/ITEM/DOC/Rain_Bird_103501268_Catalog.pdf
-
Owners/User Manual
https://assets.unilogcorp.com/187/ITEM/DOC/Rain_Bird_103501268_Owners_User_Manual.pdf
-
Video Link
https://youtu.be/8wkky69U5cs | https://youtu.be/21SVRULIbGo
-
Video Link
https://youtu.be/MpXyI7q4tZE | https://youtu.be/OFA94UmiQJ0 | https://youtu.be/Fvj8q-MnLfI
