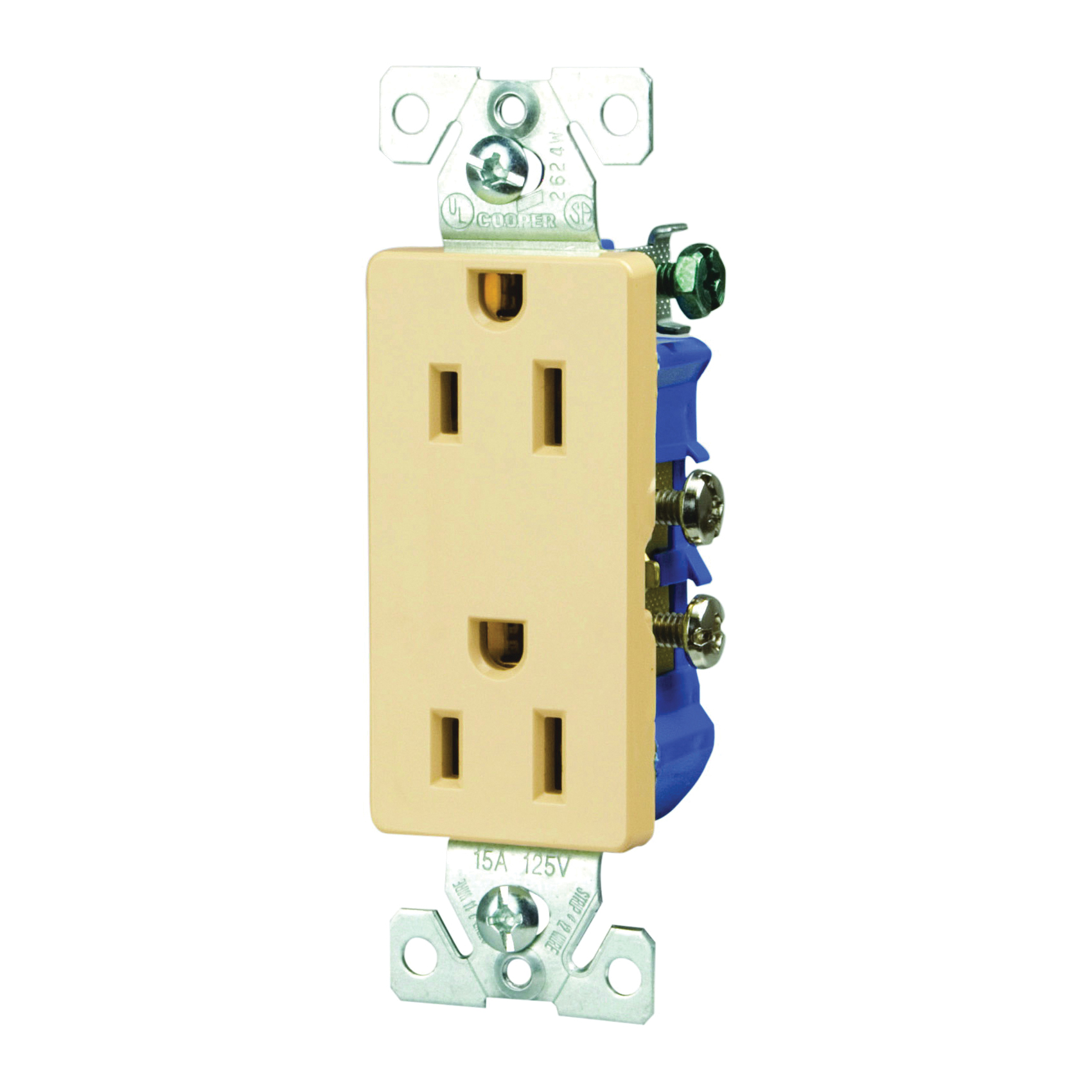

Eaton Wiring Devices 1107V
Decorator receptacles feature longer, wider straps providing 40% more contact area to wall board. Virtually eliminates floating installations. Patented built-in wire stripper for #14 and #12 wire to speed installation. Patented built-in wire looper for pre-looping. Tri-combo screws accept slotted, Phillips and Robertson-head tools for installation flexibility. Terminal screws backed out - ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Push-in terminals accept #14 solid wire.
| Dimensions | : | 4.2 in L x 1.30 in W x 0.69 in D |
| Frequency Rating | : | 60 Hz |
| Material | : | Nylon |
| Mounting Type | : | Wall |
| Operating Temperature | : | -20 to 60 deg C |
| Voltage Rating | : | 125 V |
| Wire Size | : | 14 to 10 AWG |
| Wiring Type | : | Back, Side |
| Number Of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Ivory |
| NEMA Configuration | : | 5-15R |
| Current Rating | : | 15 A |
- Tamper-resistant receptacle provide compliance with 2017 NEC Article 406.12 that states that all 15 A and 20 A
- Longer, wider strap provides 40% more contact area to wallboard
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Push-in terminals accept #14 AWG solid wire for quick installation
- Patented built-in wire looper for pre-looping
- High impact-resistant thermoplastic face and back body eliminates breakage
- Double-wipe ground contacts ensure long-term ground retention
- Easy access split circuit break-off tab
- Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
- Terminal screws backed out ready for wiring
