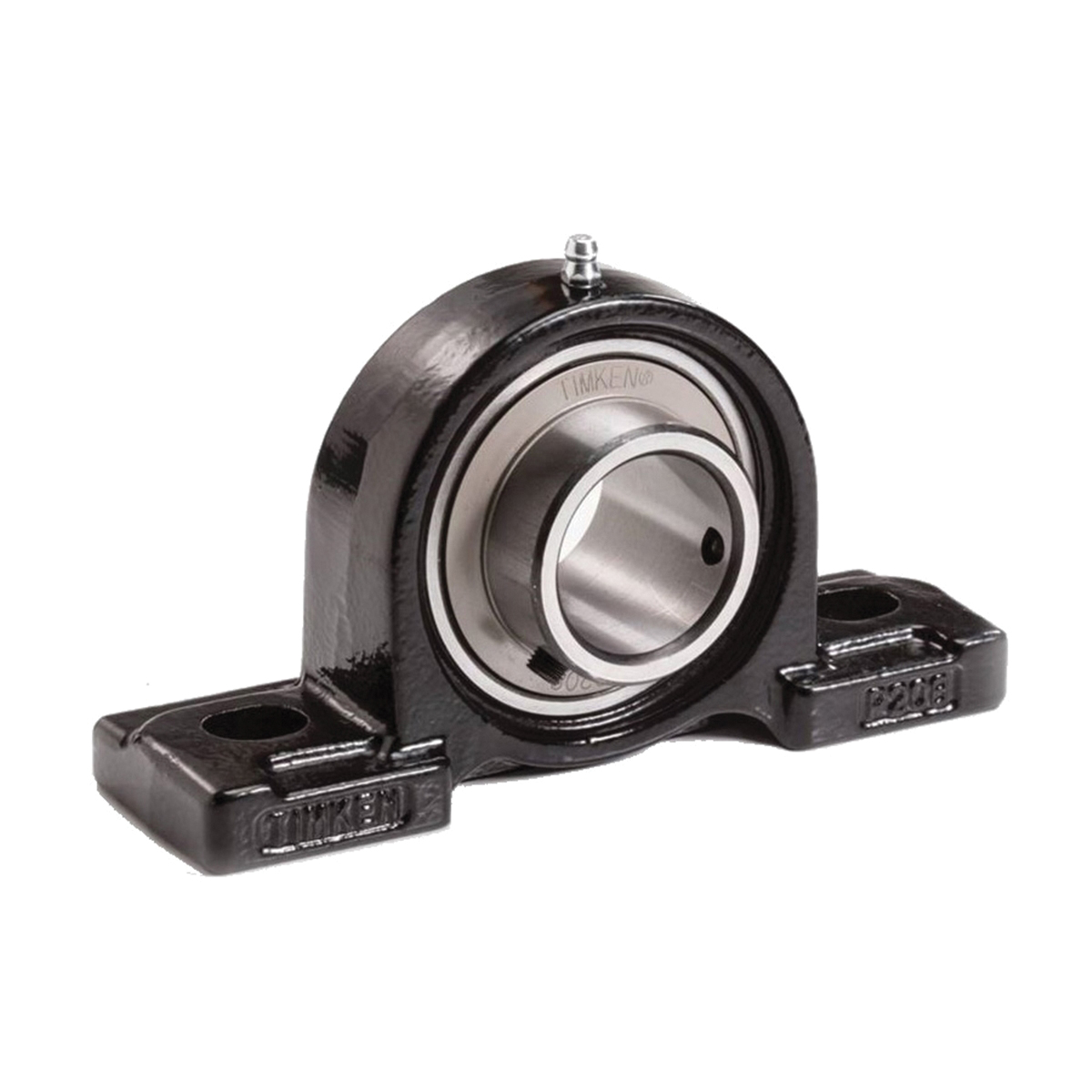

drives ucp series ucp205-16 pillow block unit, 1 in dia bore, iron, 3147 lb/ft dynamic weight capacity

Our line of standard and heavy-duty U Series ball bearing housed units includes set screw locking (UC 200 and UC 300), eccentric locking collar (UEL 200) and tapered bore for use with adapter sleeve locking series (UK 200) and provides reliable Timken products readily available for the most popular applications.

• Bearings with spherical outer rings and precision-machined cast-iron housings help prevent outer ring rotation
• Bearings withstand static misalignment of the shaft of +/- 3 deg
• Designed for normal operation between −20 and 100 deg C (−4 and 212 deg F)
• Wide inner ring bearings deliver greater shaft support
• High-strength housings suited for most industrial applications
• Bearings are prelubricated and ready for immediate installation
• Timken knowledge and support come standard
• Precision sealing provides extended bearing life and reduced lubrication leakage
• Bonded seal design includes a steel flinger for additional bearing protection
• Effective grease retention and reduced debris and moisture ingress improve bearing performance

• Catalog https://assets.unilogcorp.com/187/ITEM/DOC/Drives_103123242_Catalog.pdf
• Specification Sheet https://assets.unilogcorp.com/187/ITEM/DOC/Drives_103123242_Specification_Sheet.pdf
