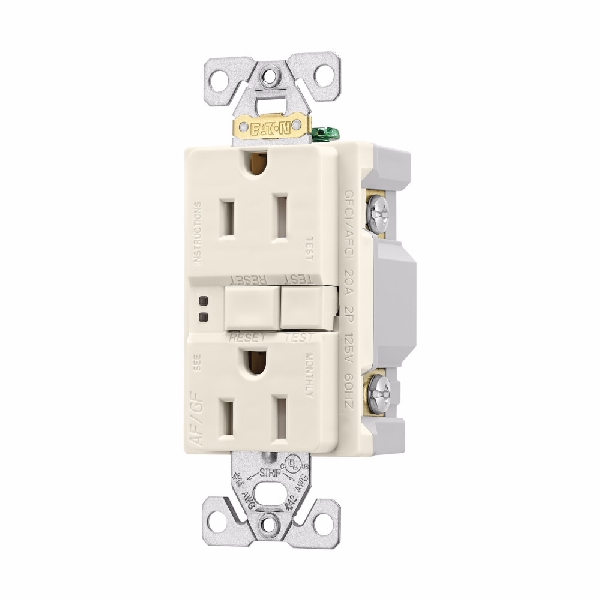

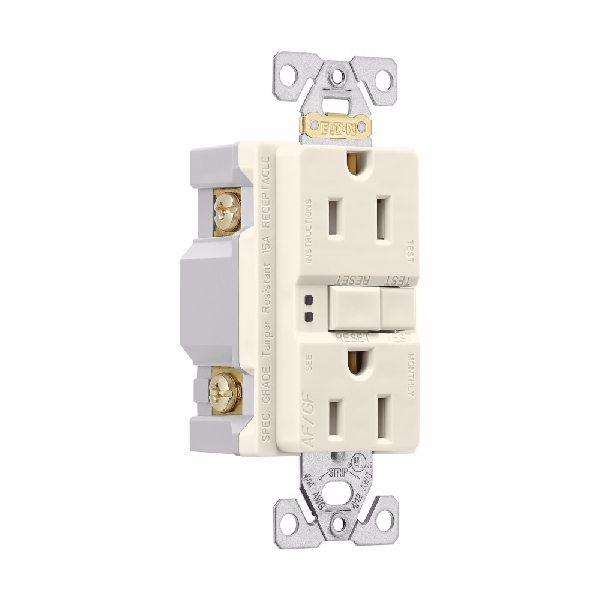

eaton wiring devices trafgf15la-k-l duplex receptacle wallplate, 2 -pole, 15 a, 125 v, back, side wiring

Eaton Wiring Devices Duplex Receptacle Wallplate, 125 V, 15 A, 60 Hz Frequency, 2 Pole, 3 Wires, Back, Side Wiring, 14 to 10 AWG Wire, 5-15R, 30 deg C Operating, PVC/Thermoplastic, Light Almond, Dimensions: 2.81 in L x 2.01 in W x 4.62 in H, Includes: Thermoplastic Wallplate

• Protects from both series and parallel arcs downstream from the outlet Branch Circuit (OBC) AF/GF receptacle
• OBC AF/GF receptacles also protect from upstream series arcs
• Trip indicators make it easy to diagnose arc and ground faults
• Device self-tests periodically to ensure proper function of both the ground fault and arc fault protection elements
• Meets and exceeds 10 kA short circuit testing and underwriters laboratories (UL) UL943 safety standards
• Ground termination with backwire clamp provides secure wiring and reduces installation time
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
• Tapered backwire openings handle multiple wire sizes and types for applications up to #10 AWG solid or standard wire
• When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
• Lock-out functionality prevents miswired line-load connections and GFCI/AFCI circuitry damage

• Specification Sheet https://assets.unilogcorp.com/187/ITEM/DOC/Eaton_Wiring_Devices_100034307_Specification_Sheet.pdf
