PARKROSE HARDWARE
eaton wiring devices trsgfnl15la gfci and nightlight, 2 -pole, 15 a, 125 v, back, side wiring, nema: 5-15r
- Model Number: TRSGFNL15LA
- UPC: 032664743160
-
Store SKU:
-

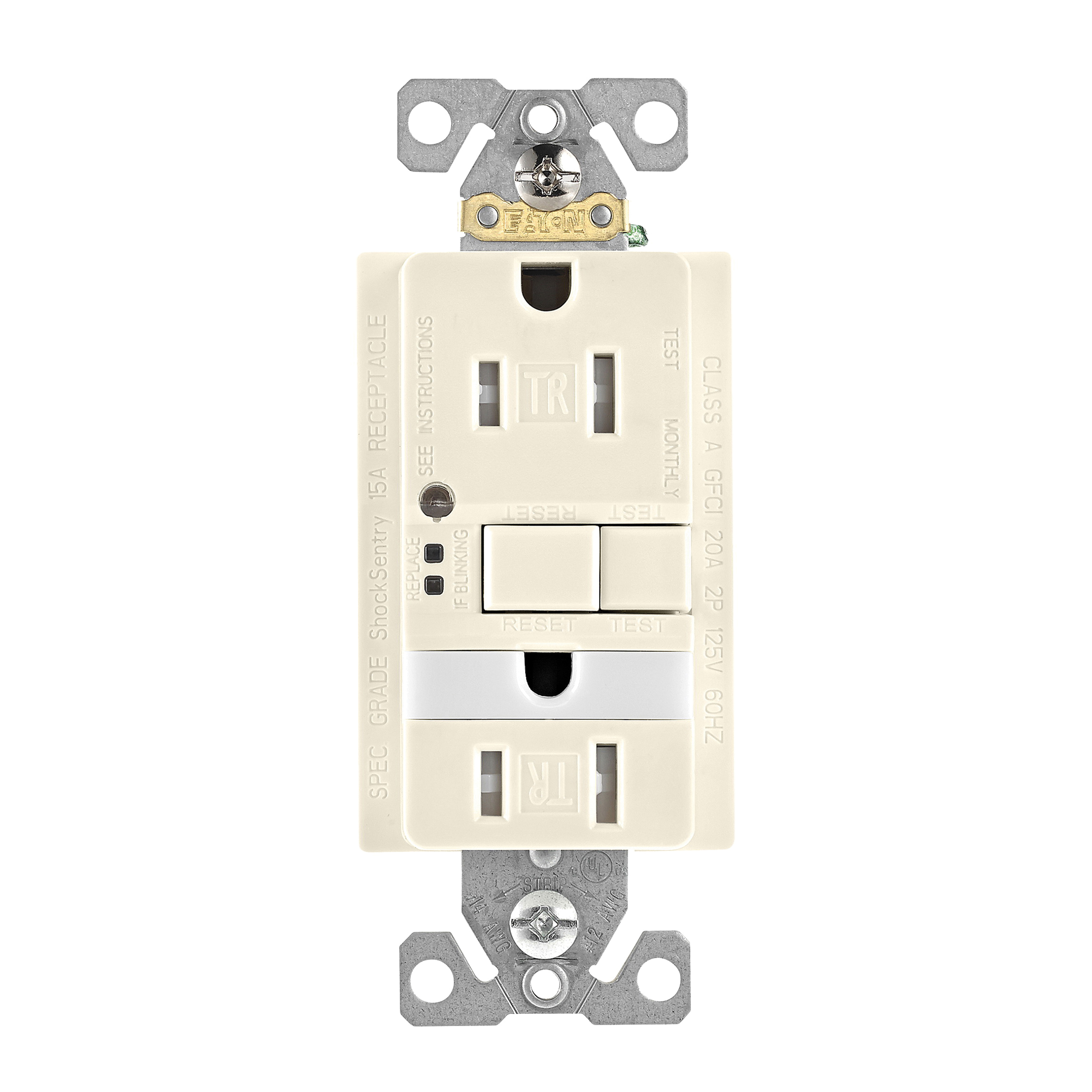

Eaton Wiring Devices TRSGFNL15LA GFCI and Nightlight, 2 -Pole, 15 A, 125 V, Back, Side Wiring, NEMA: 5-15R
-
Promo Price:
-
-
Supplier SKU:
- Web SKU: 100036371
-
Supplier SKU:
Eaton Wiring Devices TRSGFNL15LA
The Arrow Hart line of GFCI's provides the safest design possible by denying power if the device is mis-wired or if it is no longer providing GFCI protection. The combination GFCI with nightlight adds an additional safety feature by providing easy way finding in the dark. The tamper-resistant shutters prevent foreign objects from being inserted and provide code compliance for both residential and commercial applications with the latest self-testing features.
| Dimensions | : | 4.2 in L x 1.68 in W x 1.27 in D |
| Frequency Rating | : | 60 Hz |
| Includes | : | Mid-Size Wallplate |
| Material | : | Polypropylene |
| Mounting Type | : | Wall |
| Operating Temperature | : | -35 to 66 deg C |
| Voltage Rating | : | 125 V |
| Wire Size | : | 14 to 10 AWG |
| Wiring Type | : | Back, Side |
| Number Of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Light Almond |
| NEMA Configuration | : | 5-15R |
| Current Rating | : | 15 A |
- Provides code compliance for areas requiring GFCI protection with addition of nightlight for easy and safe way
- Light sensor turns LED nightlight ON in the dark and OFF in the light
- LED's produce color temperature of 3000 to 3500K for a warm "incandescent-like" glow
- Automatically self-tests periodically to ensure GFCI protection
- End-of-life lockout and denial of power
- Second indicator light signifies self-test status
